Your Trusted PCB Assembly Manufacturer

Our PCB Assembly Services

You can rely on us for printed circuit board assembly. We value quality, reliability, and on-time delivery. Whether your project needs custom, small-batch, large-volume, or lead-free PCB assembly, we can help. You’ll find our prices competitive for all your electronic manufacturing needs. Skip the hassle of sourcing parts and dealing with various vendors. Our experts will locate the best components for your product.

We offer both SMT and THT assembly, backed by ruggedization options such as conformal coating and potting. Testing includes X-ray, AOI, and ICT. Our processes are 100% ROHS-compliant. The capability exists to assemble 01005 chips, UFBGA/LGA components, and double-sided BGA assembly.

Our quick prototype service lets your R&D team quickly test their designs. You can also use our DFA and DFM services during the design process, helping you finalize designs faster, reduce time to market, and gain a competitive edge.

Prototype Assembly

We provide quick-turn PCB prototype and assembly services for small batches and urgent needs, supporting consignment & turnkey projects.

Production Assembly

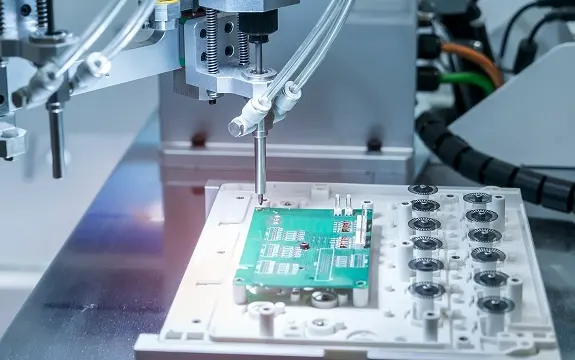

Advanced automated equipment allows us to efficiently process production orders without NRE fees, minimum orders, or contractual obligations.

Box Build

Providing box build and electro-mechanical assembly, including PCB integration, cable & wire harnessing, and complete enclosure assembly.

Consigned Assembly

We assemble your circuit boards using advanced automation. You provide all required parts, including the PCBs and electronic components.

Partially Consigned

Supply your custom, stockpiled, and extra parts. We'll help source the rest, including PCBs and missing elements, then assemble your circuit boards.

Turn-key Assembly

We manage the complete process, from sourcing bare PCBs and components to final assembly and testing, ensuring it meets your application needs.

Types of PCBs That We Assemble

We use advanced mounting techniques to assemble three types of PCBs.

Rigid PCB: This is common in most PCB assemblies. A solid core provides their thickness and rigidity. Fiberglass is a common material, but less expensive options like phenolics or epoxies are available, though they are not as durable.
Flexible PCB: These offer better bendability compared to rigid boards. High-temperature plastics like Kapton are commonly used, as it blends well.
Metal Core PCB: This is a good choice for replacing typical FR4 boards. The metal core allows them to spread heat effectively. This helps dissipate heat from the board, protecting heat-sensitive components.

Our PCB Assembly Capabilities

Our factory includes multiple assembly lines. This enables us to meet specific requirements on schedule. We ensure quality by inspecting and testing at each assembly stage. Before production, we identify and resolve any design or production issues in the prototype phase, working with you.

Assembly Types

SMT
Thru-hole
Mixed assembly (SMT & THD)
Single or double-sided
Large parts on both sides
BGA on both sides
Kit Assembly

Board Types

FR-4 board
Metal core board
Rigid board
Flexible board
Rigid-flex board

Component Types

Passive down to 01005 sizes
BGA 0.25mm pitch
Quad flat package no-lead
Quad flat package (QFP)
Small Pitch package of 8 mils
Hard metric connectors
Cable & Wire

PCB Finish

SMOBC/HASL
Electrolytic gold
Electroless gold
Electroless silver
Immersion gold
Immersion tin
OSP

Parts Procurement

Full turnkey
Partial turnkey
Kitted/Consigned

Solder Types

Leaded
No-clean process
Lead-free/RoHS compliant
SMD and TH components assembly

Board Dimensions

Smallest size: 0.2″ x 0.2″
Largest size: 24″ x 18″

Quality Inspection

Visual inspection
AOI inspection
X-Ray inspection
In-circuit test
Functional test

Quickturn Lead Times

24 Hour Turn

10 PCBs Maximum
Up to 20 BOM Line Items
Up to 100 SMT placements / board
Maximum of 10 Through Hole Components per Order

48 Hour Turn

30 PCBs Maximum
Up to 25 BOM Line Items
Up to 180 SMT placements / board
Maximum of 50 Through Hole Components per Order

5 Day Turn

130 PCBs Maximum
Up to 50 BOM Line Items
Up to 600 SMT placements / board
Maximum of 200 Through Hole Components per Order

7 Day Turn

200 PCBs Maximum
Up to 80 BOM Line Items
Up to 800 SMT placements / board
Maximum of 2220 Through Hole Components per Order

Standard Lead Times

7 Day Turn

800 PCBs Maximum
Up to 80 BOM Line Items
Maximum of 600 Through Hole Components per Order

10 Day Turn

1500 PCBs Maximum
Up to 100 BOM Line Items
Maximum of 1200 Through Hole Components per Order

15 Day Turn

5000 PCBs Maximum
Up to 130-150 BOM Line Items
Maximum of 4000 Through Hole Components per Order

20 Day Turn

10000 PCBs Maximum
Up to 200 BOM Line Items
Maximum of 5000 Through Hole Components per Order

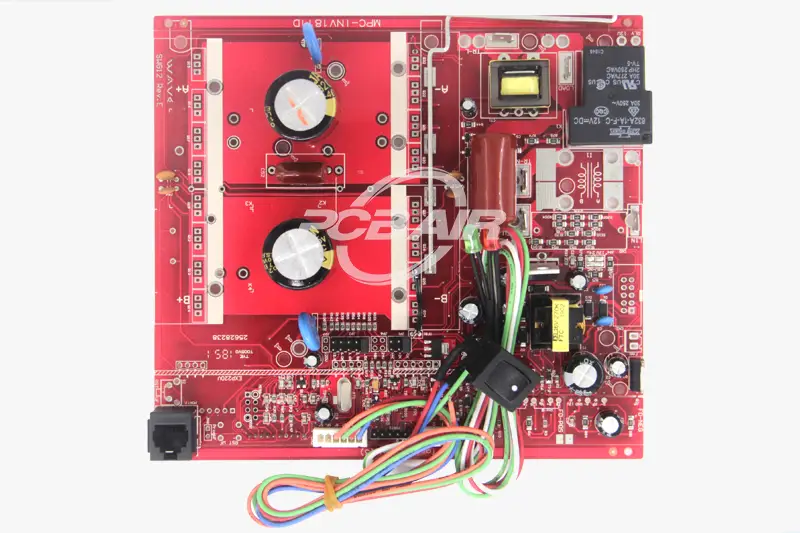

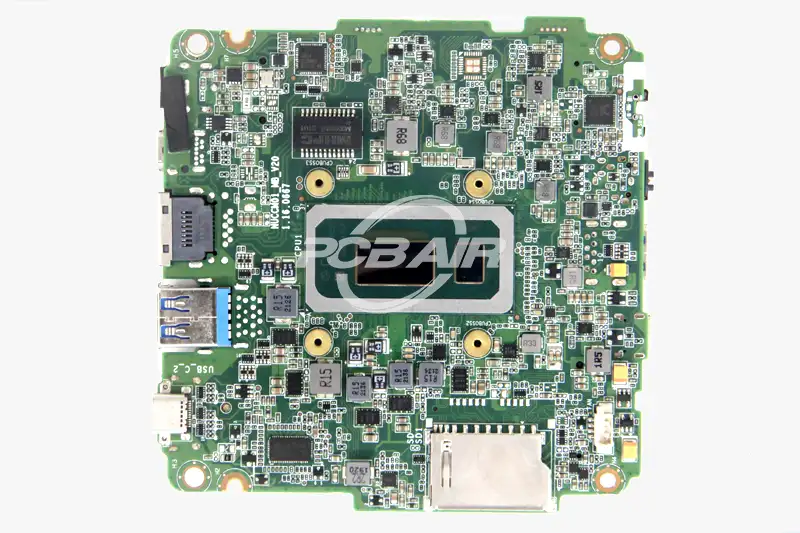

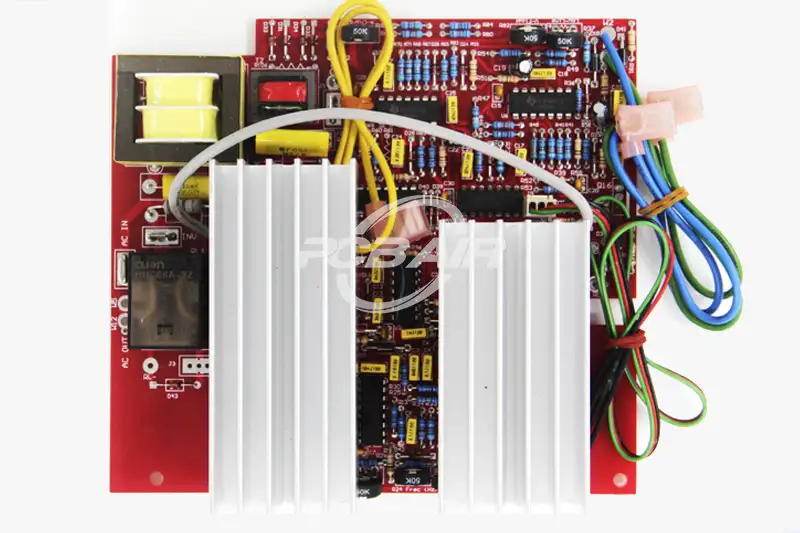

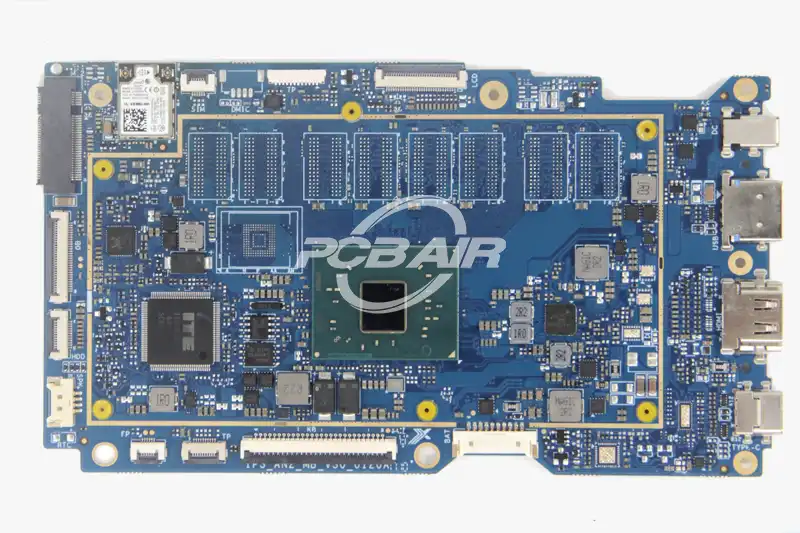

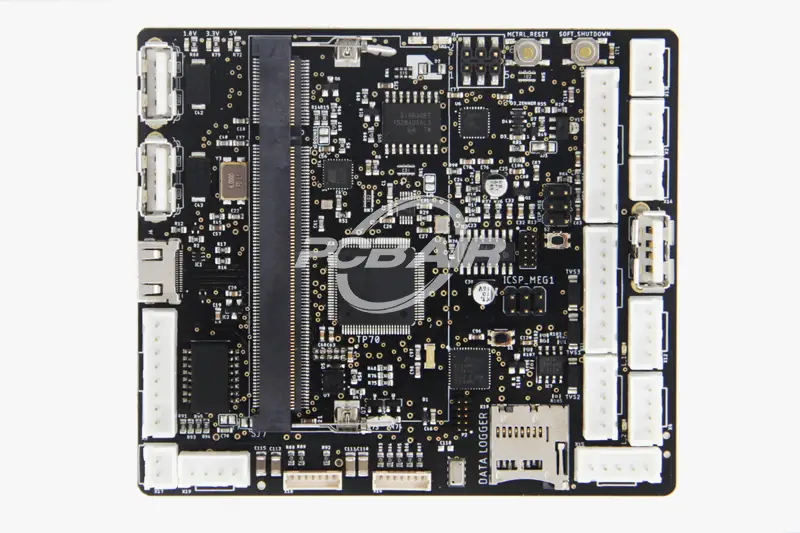

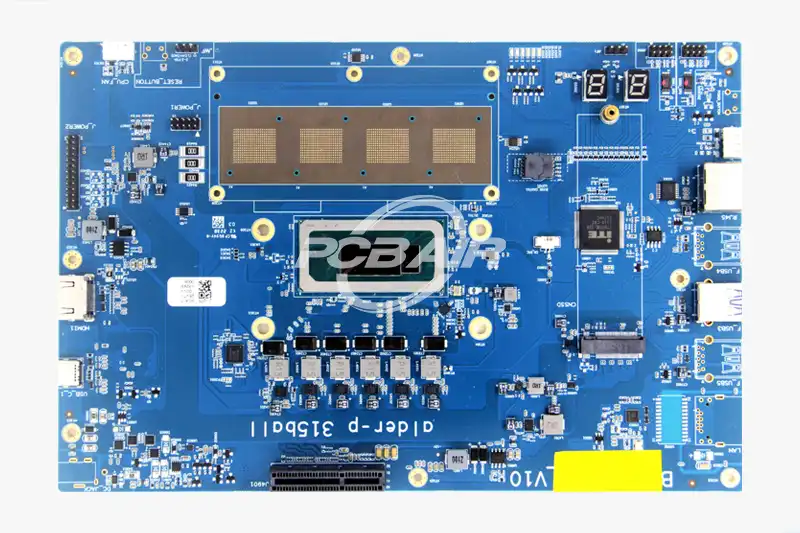

PCB Samples We Assembled for Our Customers

We check your PCBs throughout production to catch any faults early. Our design and layout engineers are ready to work with you, regardless of how large or complex your project is.

Why Choose Our PCB Assembly Services?

With more than 10 years under our belt in PCB assembly, we’ve got you covered. Our team can help you find replacement components for parts that are out of date or unavailable. Plus, we offer DFX reviews to continuously improve your designs. Choose us, and we’ll make every effort to make sure your assembly is delivered on schedule and meets your quality standards.

We have the capability to assemble critical control system PCBs designed for challenging environments. Our ISO 9001:2015 and UL safety certifications ensure our adherence to rigorous quality and safety standards. For component procurement, we order genuine parts from your designated suppliers or our partner companies.

Our PCB Assembly Equipment

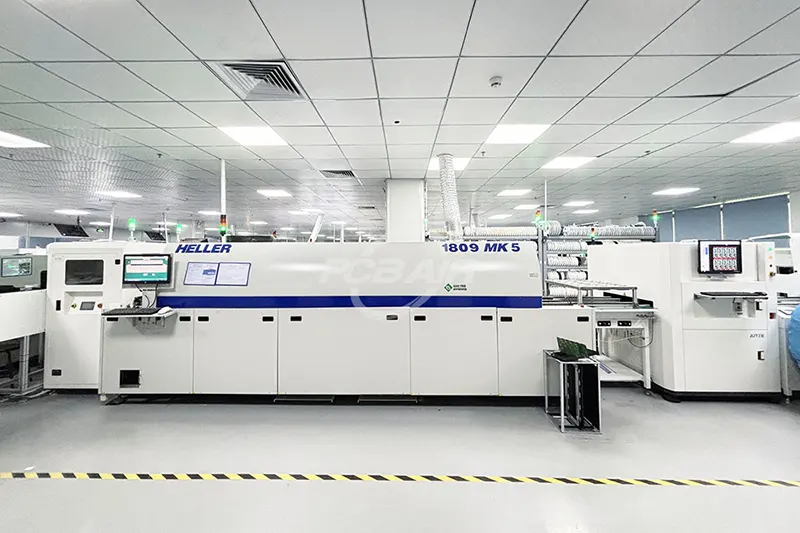

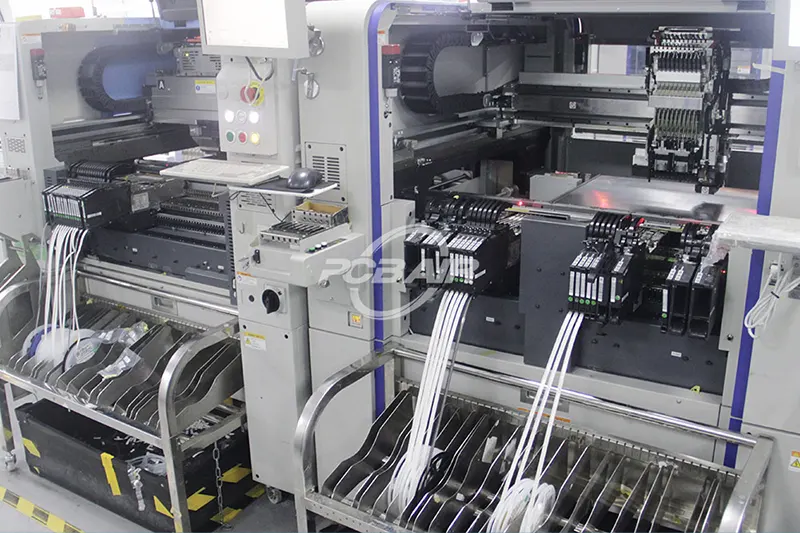

We know that to successfully complete PCB design and assembly, the latest software and equipment are key. Our factory in Shenzhen, China, operates eight Panasonic SMT production lines. We consistently invest to better serve our customers. We have the capability to assemble components as small as 01005 passives, QFNs, BGAs, and µBGAs.

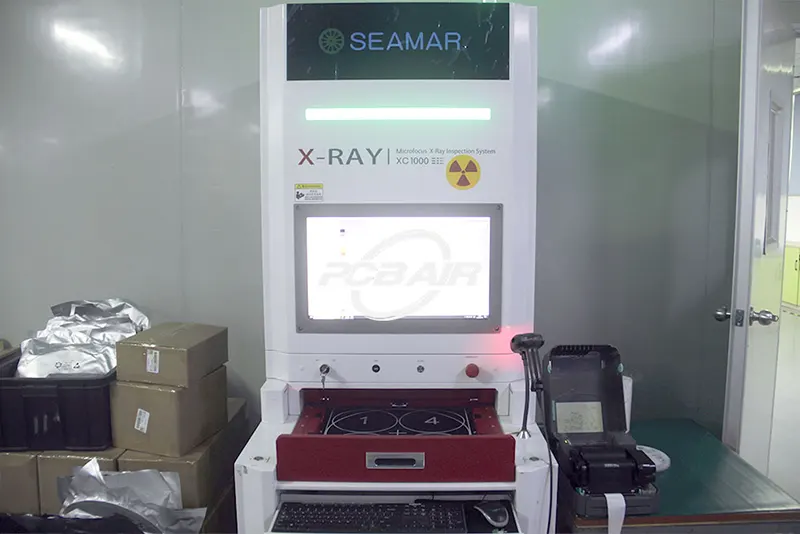

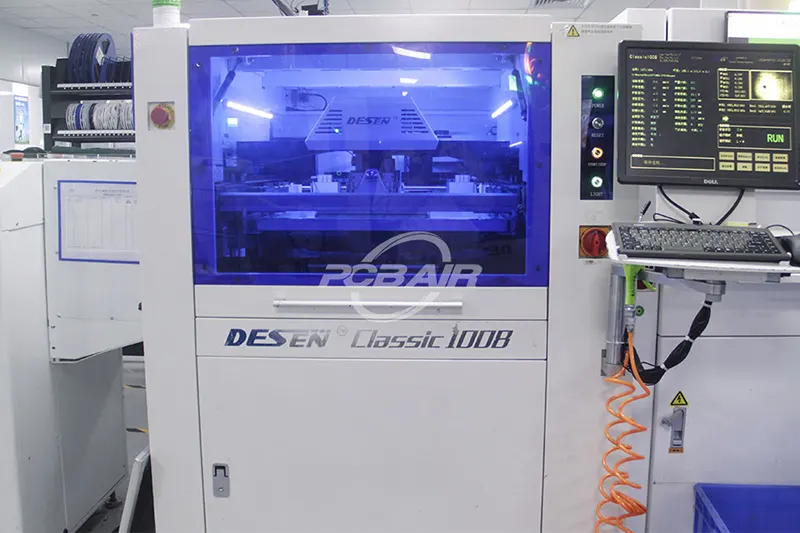

Our PCB assembly facility has various workstations and preparation systems. We also have sophisticated soldering systems and a wide range of PCB assembly equipment. This includes testing equipment, pick and place machines, stencil printers, X-ray machines, and automated inspection tools, ensuring we can meet all your assembly needs.

SEE ALL EQUIPMENT

Are you looking for a reliable PCB manufacturer for your next project?

GET A FREE QUOTE NOW
